Especificaciones:

• Marca: Cudy
• Modeloy versión: GS108E 1.0
• Memoria:
  •  Flash/ROM: 8 MB (64 Mbit ) NOR
• Interfaz:
  • Puertos RJ45 Gigabit: 8
  • Extend Mode Ports: Configurable
  • VLAN Mode Ports: Configurable
  • LED:
    • Power
    • Speed/Link/Act of Each Ethernet Port
• Desempeño:
  • Max Copper Speed and Distance:
    • Cat. 3 or higher cable: 100 meters at 10 Mbps
    • Cat. 5 or higher cable: 100 meters at 100 Mbps
    • Cat. 5e or higher cable: 100 meters at Gigabit
    • Cat. 5e or higher cable: 250 meters at 10 Mbps
    • Cat. 6 or higher cable: 150 meters at Gigabit
  • Copper Speed and Distance Note:  250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
  • MAC Address Table 8192
  • VLANs: 4096
  • Max Switching Capacity: 16 Gbps
  • Max Forwarding Rate: 11.904 Mpps
  • Jumbo Frame: 15 KB
  • Packet Buffer: 4 Mbit
• Consumo energético:
  • Basic Power Saving: True
  • Power Methods AC
  • Power Input 5V⎓0.55A
  • Adaptador de corriente incluido en la caja:
    • Input: 100-240V~, 50/60Hz
    • Output: 5V⎓0.55A
  • Max Power Consumption: 2.75W
  • Idle Power Consumption 2.2W
• Conmutación:
  • 802.3 Protocols
    • 802.3x Flow Control
    • 802.3i 10BASE-T
    • 802.3u 100BASE-TX
    • 802.3ab 1000BASE-T
    • 802.3az Power Saving
  • 802.1 Protocols 802.1p:
    • 802.1d: STP
    • 802.1w: RSTP
    • 802.1p: LAN Layer 2 QoS/CoS
    • 802.1q: VLAN Bridge Operation
    • 802.1ab: LLDP/LLDP-MED
• Port Management
  • Port On/Off
  • Port Negotiation Speed
  • Port Trunk (Static Aggregation)
  • Port Mirror
  • Data Rate Limit
  • Jumbo Frame Settings
  • Storm Control
  • Traffic Monitor
  • MAC Address Management
  • EEE (802.3az)
• Puertos de sesiones en espejo: 4
• Port Trunk Groups 4
• Max Port Num per Port Trunk Group 7
• Características L2:
  • IGMP Snooping
  • Loop Prevention
  • Loop Detection
  • DHCP Snooping
  • LLDP Config and Neighbors
  • MTU VLAN
  • Port-Based VLAN
  • 802.1Q VLAN
  • Voice VLAN
  • DSCP QoS
  • 802.1p QoS
  • Port-Based QoS
• Fiabilidad:
  • Métodos de puesta a tierra:
    • Enchufe de tres clavijas
    • Punto de puesta a tierra
  • EMS
    • IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
    • IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
  • Entorno:
    • Temperatura operativa: 0 ℃ ~ 40 ℃
    • Temperatura de almacenamiento: -40 ℃ ~ 70 ℃
    • Humedad de funcionamiento: 10% ~ 90% sin condensación
    • Humedad de almacenamiento: 5% ~ 90% sin condensación
• Características físicas:
  • Dimensiones: 138×78×25 mm
  • Peso: 214.5 g
  • Material: caja metalica
  • Instalación:
    • Escritorio ( superficial )

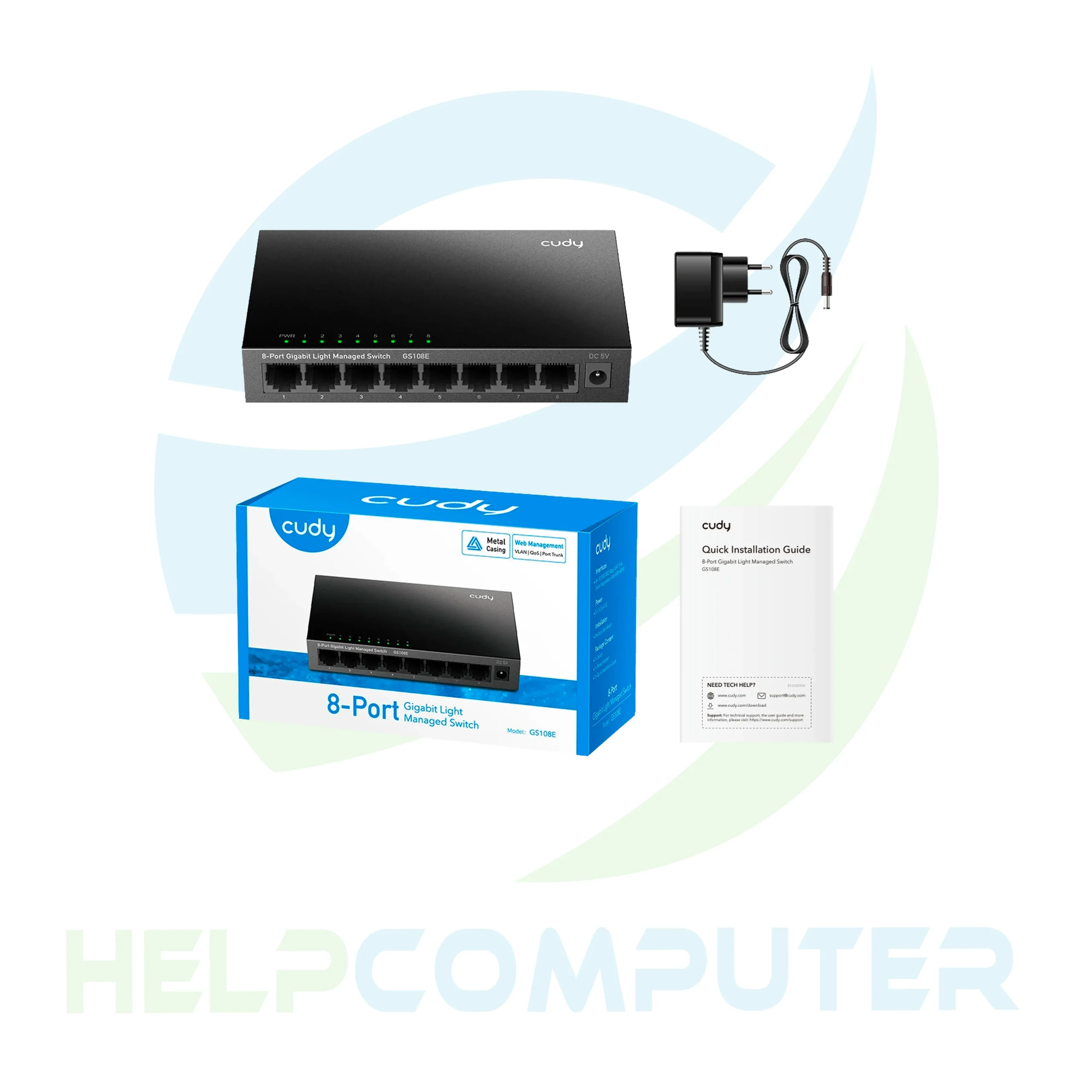

• Contenido de la caja:
  • GS108E
  • Power Adapter
  • Installation Guide
